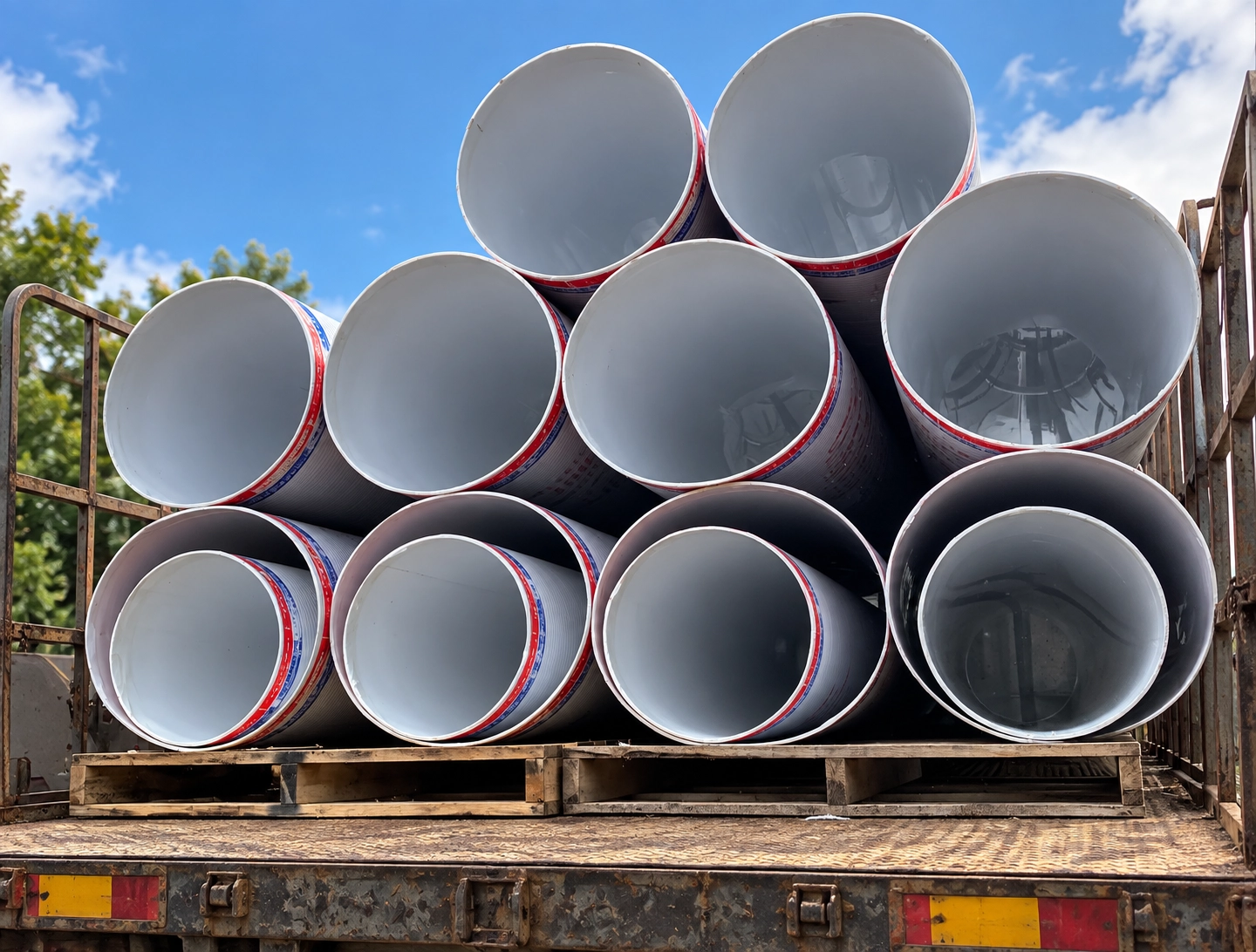

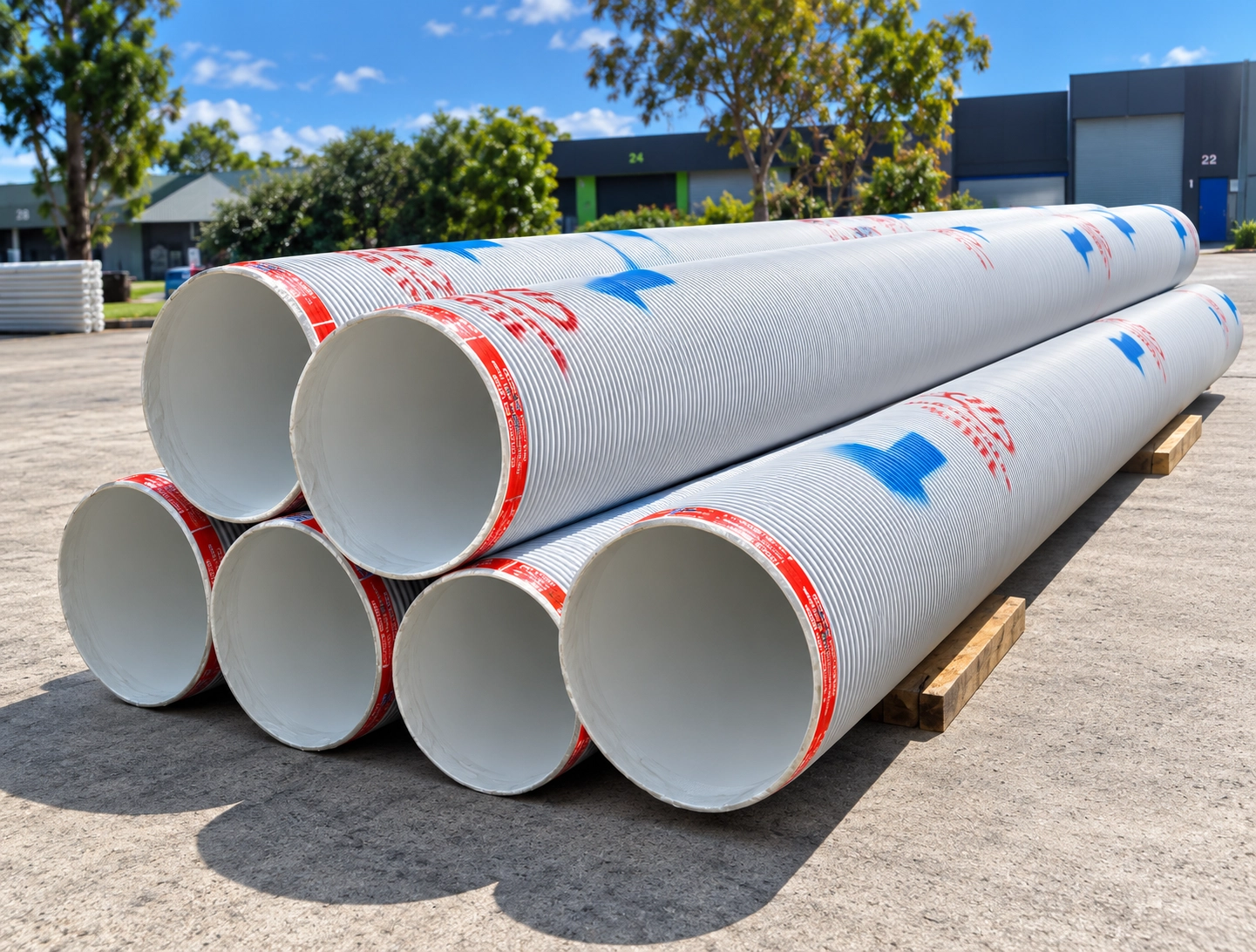

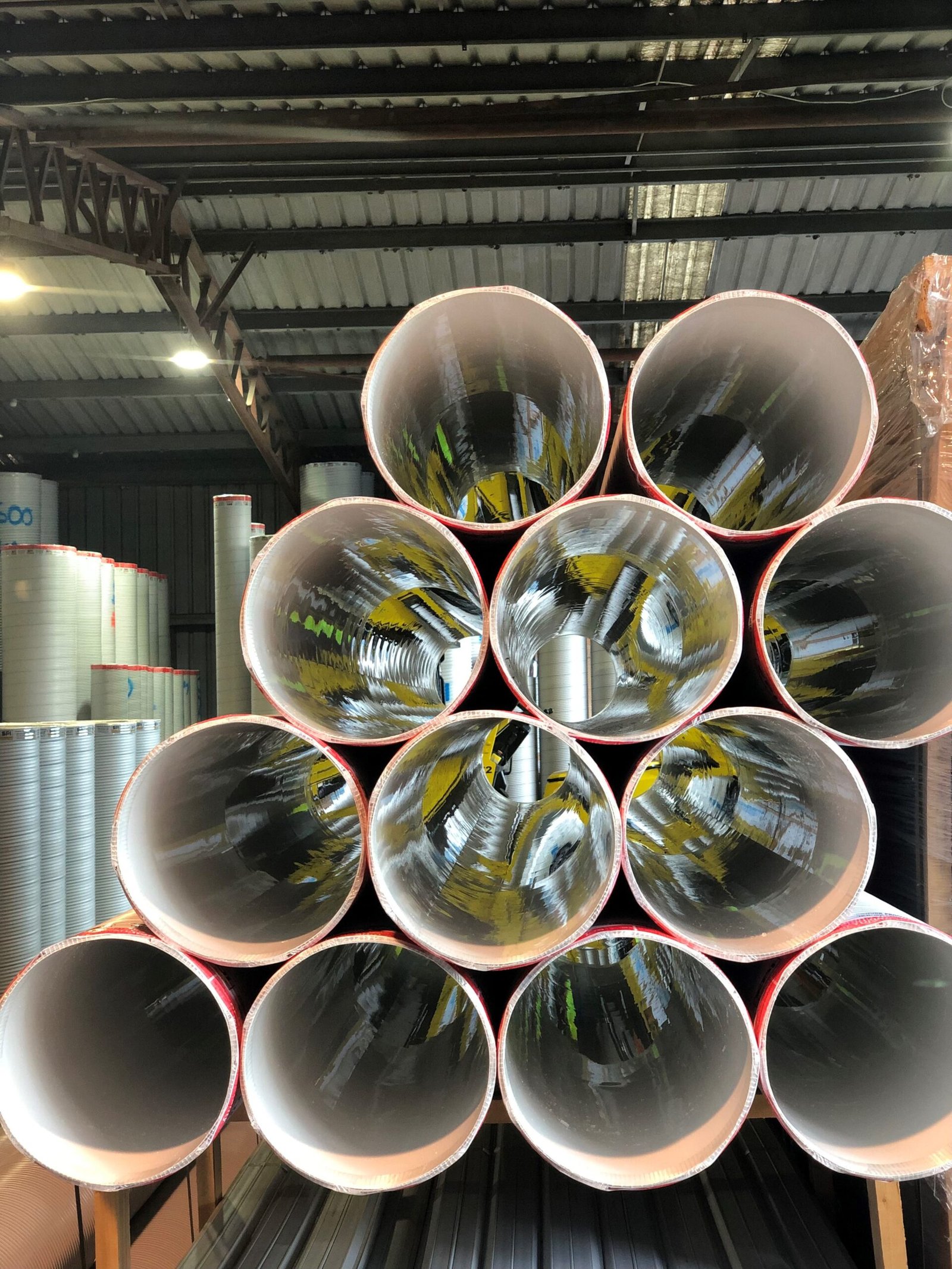

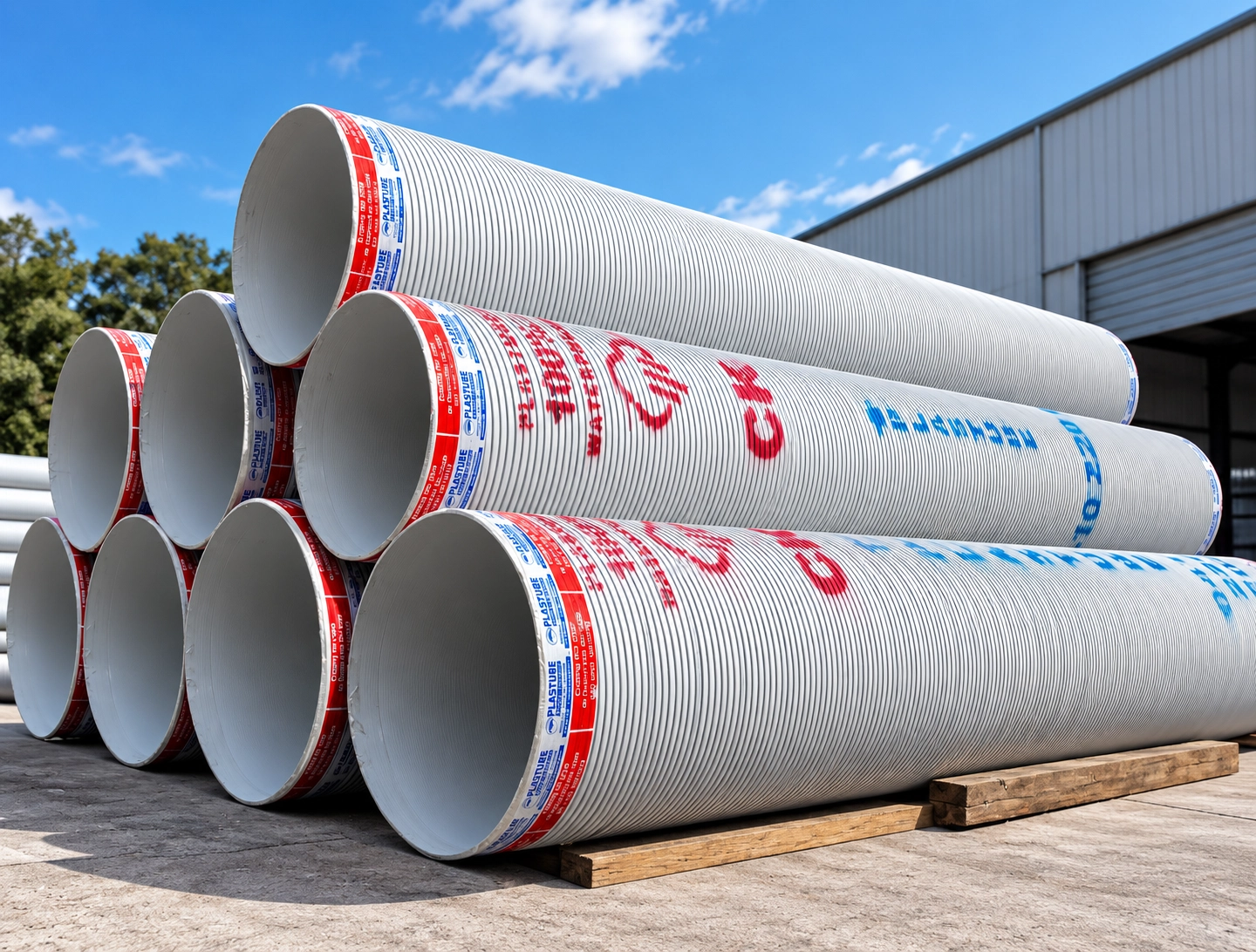

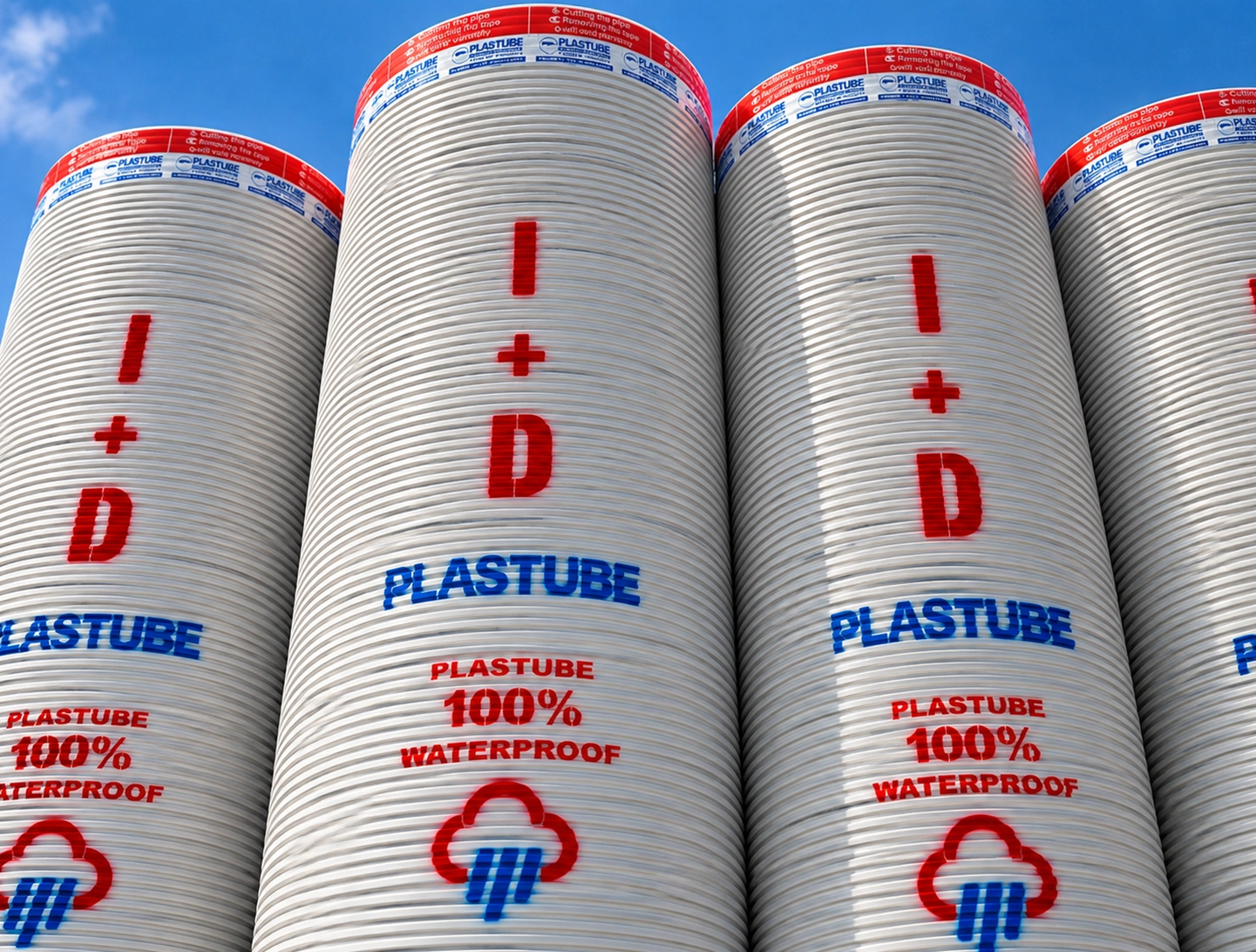

ProductsPVC Lined Column Formwork
Where a column will be left exposed — in a foyer, car park, façade, or feature structure — a standard formwork finish isn’t good enough. PVC lined column formwork uses an internal lining system inside the tube to produce a smooth, uniform, architectural-grade off-form concrete finish, without the cost of a separate rendering or finishing trade.

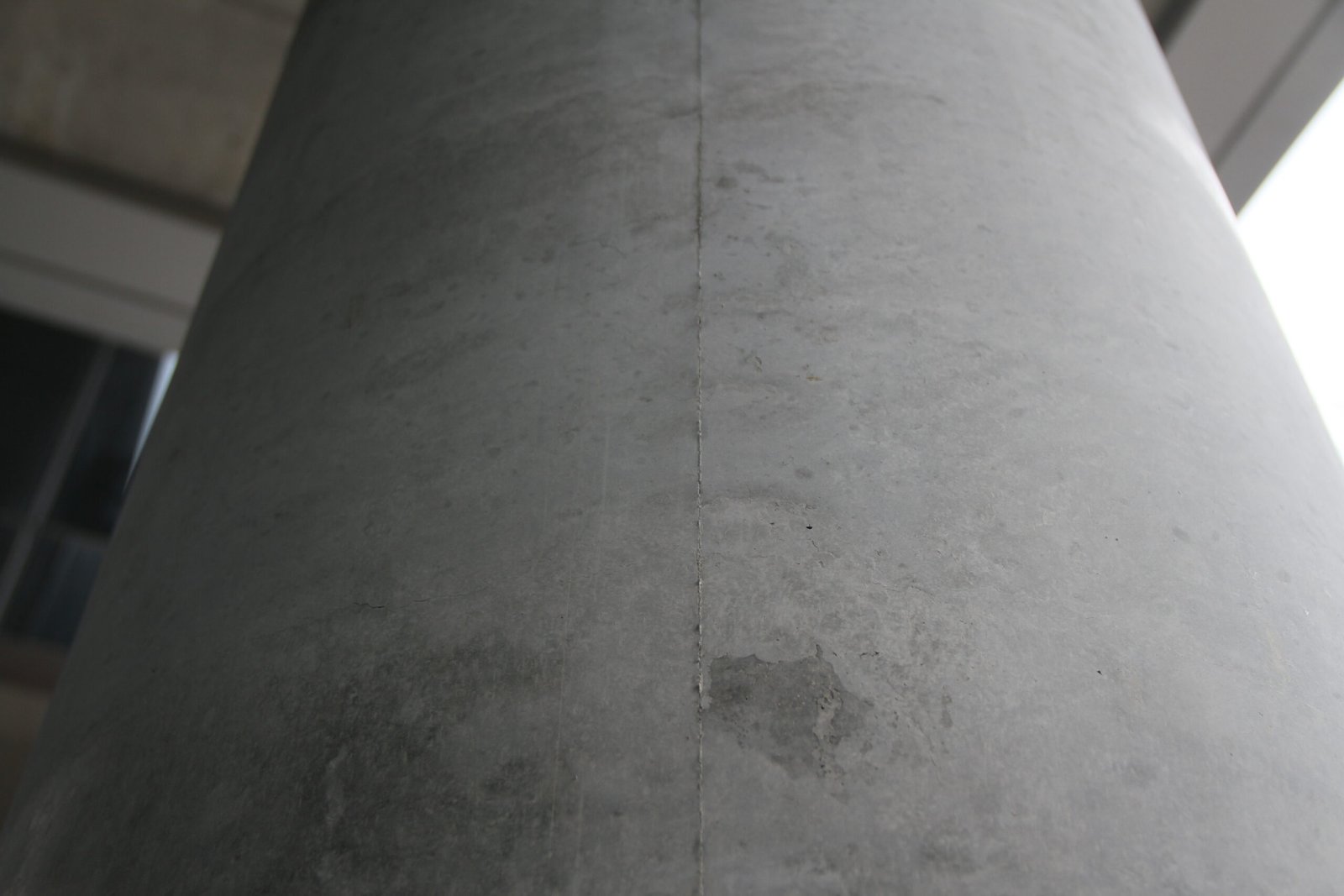

Architectural, Off-form Smooth Surface
No bag marks, ridges, or spiral seams telegraphing through
Reduces or Eliminates Finishing Works
Less patching, grinding, or rendering after strip
Lightweight and Easy to Strip
Like our standard column formwork
Made to Measure
To your specified diameter and length
Requested at Order Stage
Simply ask for a lined column when placing your quote
100% Waterproof
Consistent performance across weather conditions
What is a “lined” column form?
A lined column form is a standard PVC column formwork tube fitted internally with a lining layer that produces a smoother, more consistent concrete surface once stripped, suited to architecturally exposed columns.
Does a lined finish cost more than standard PVC column formwork?
There is a modest premium over standard column formwork, but it is generally offset by reduced finishing, patching, and rendering costs after the pour.
Do I need to specify a lined finish when I order, or can it be added later?
It should be requested at the time of ordering, as the lining is applied during manufacture of the tube.
lined PVC formwork suitable for large-diameter columns?
Yes, lined finishes are available across the same diameter range as our standard column formwork, including larger diameters manufactured through our Queensland facility.
